| AC Voltage Outputs | |
|---|---|
| Source Channels | 4 × 300 V ac (L-N) |
| AC Voltage Output Power | 35 VA max each@300V |
| 28 VA max each@3x300V | |
| 23 VA max each@200V | |
| 12 VA max each@100V | |
| 7 VA max each@63.5V | |
| 6.65 VA max each@57.7V | |
| 1.1 VA max each@10V | |
| Accuracy | <0.015%Rd+0.005%Rg Typ. <0.02%Rd+0.03%Rg Guar. |
| Resolution | 0.001V |
| DC Offset | <5mV Typ. <60mV Guar. |
| Distortion | <0.05% Typ. / <0.1% Guar. |
| Rising/Falling Response | <100us |
| DC Voltage Outputs | |
| Source Channels | 4 |
| DC Voltage Output Range | 0~300 V (L-N) |
| DC Voltage Output Power | 40W Max |
| DC Voltage Accuracy | <0.03%Rd+0.01%Rg Typ. <0.04%Rd+0.06%Rg Guar. |
| Rising/Falling Response | <100us |
| Resolution | 1mV |
| AC Current Outputs | |
| Source Channels | 6 |
| AC Current Output Range | 6 x 0~20A, L-N |
| 3 x 0~40A, LL-N | |
| 1 x 0~60A, LLL-N | |
| AC Current Output Power (Max) | 180VA max for 20A L-N 200VA max for >20A LL-N |
| AC Current Output Accuracy | <0.015%Rd+0.01%Rg Typ. <0.02%Rd+0.03%Rg Guar. |
| DC Offset | <1mA Typ. <2mA Guar |
| Distortion | <0.05% Typ. / <0.1% Guar. |
| Rising/Falling Response | <100us |
| Resolution | 1mA |
| DC Current Outputs | |
| Source Channels | 3 |
| DC Current Output Range | 0~10A, L-N |
| DC Current Output Power | 145W |
| DC Current Accuracy | <0.03%Rd+0.01%Rg Typ. <0.04%Rd+0.06%Rg Guar. |
| Rising/Falling Response | <100us |
| Resolution | 1mA |
| AC Frequency | |
| Range Sine Signals | DC, 10 ~ 1000Hz, 3000Hz transient |
| Output Accuracy | ±5ppm |
| Resolution | 0.001Hz |
| Phase | |
| Output Range | -360°~360° |
| 50Hz Output Accuracy | ±0.1° Typ. / <0.2° Guar. |
| Resolution | 0.001° |
| Binary Input and Time Accuracy | |
| Binary Input Logarithm | 4 pairs |
| Trigger Mode | Dry/Wet contact |
| Input Voltage Range | 0V～300Vdc |
| Timing Accuracy | < ±1ms @ 0.001~1s < ±0.1% @ >1s |
| Timing Resolution | 36us |
| Max Time Limit | infinity |
| Binary Output (Relay Contacts) | |
| Binary Output Pairs | 2 pairs（DO-1 and DO-2） |
| Type | Potential free relay contacts, software controlled |
| Break Capacity AC | Vmax: 380V(AC) / Imax: 8A / Pmax: 2000VA |
| Break Capacity DC | Vmax: 240V(DC) / Imax: 5A / Pmax: 150W |
| Response Time | ≤10 ms |
| Binary Output (Fast eSSR) | |
| Binary Output Pairs | 2 pairs (DO-3 and DO-4) |
| Circuit Breaker Simulate | Can be define as Open or Close status |
| Break Capacity AC | Vmax：250V(AC) / Imax: 0.2A |
| Break Capacity DC | Vmax：250V(DC) / Imax: 0.5A |
| Response Time | <100us |
| Contact Performance | Open the dry contact output using opto-coupler relay, the on-resistance is ≤ 6Ω, and the shut-off withstand voltage is ≥DC300V |
| Time Synchronization (Time Accuracy) | |
| GPS / BD | Yes, <1us |
| IRIG-B | Yes, <1us |
| Power Charger | |
| Rated Power Supply | 110~240Vac,1-phase |
| Rated Input Frequency | 50 Hz/60 Hz |
| Charger Output | >65W, compatible with QD3.0 or PD3.0, supporting single-port output of 20V × 3.25A |
| Inbuilt Battery | |
| Nominal Volume | 10.8V, 2x47.52Wh (5000mAh) |
| Operating Temperature | Charge: 0 to 45°C (Ambient) Discharge: -20 to 60°C (Ambient) |
| Charge Time (0-80%) | 2h |
| Charge Time (0-100%) | 4h |
| Interface Port | |
| RJ45 Ethernet | 1 port, 10/100M |
| USB | USB2.0 x 1 |
| Wifi | Inbuilt 2.4GHz wifi |
| Operation Control | |

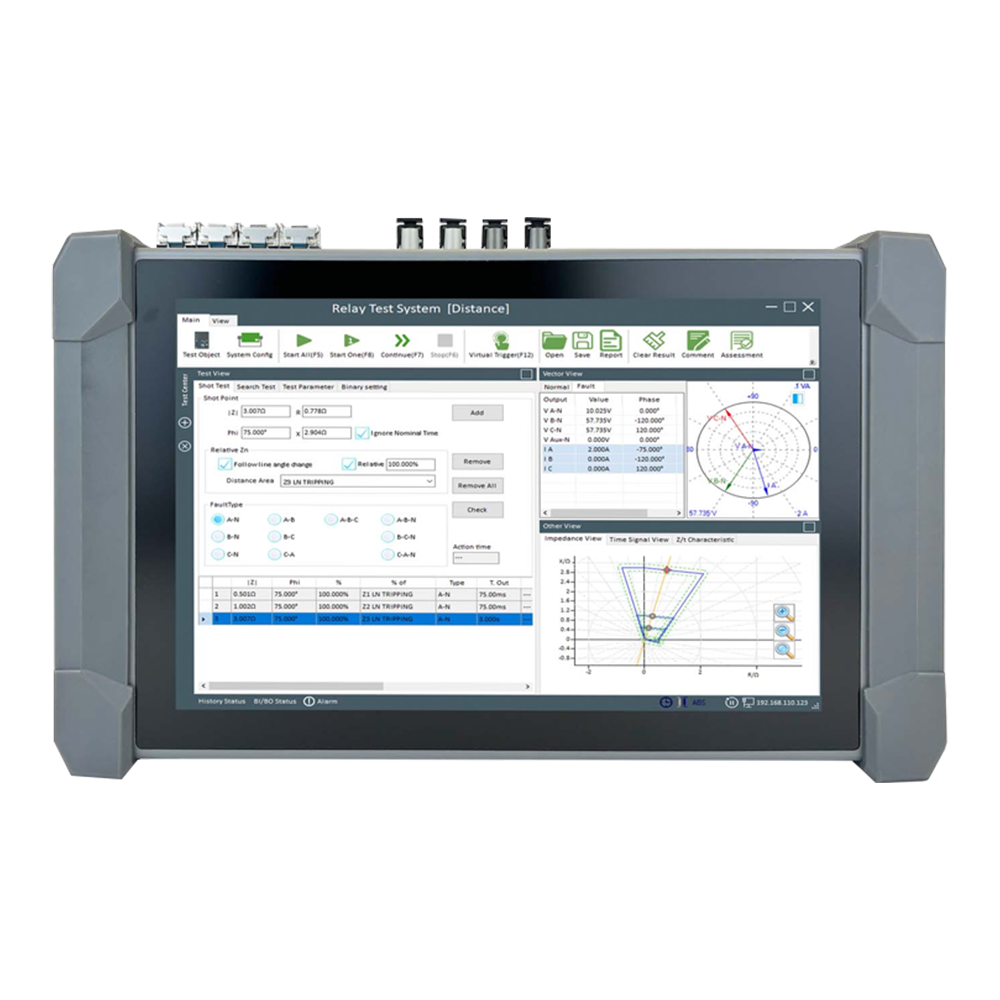

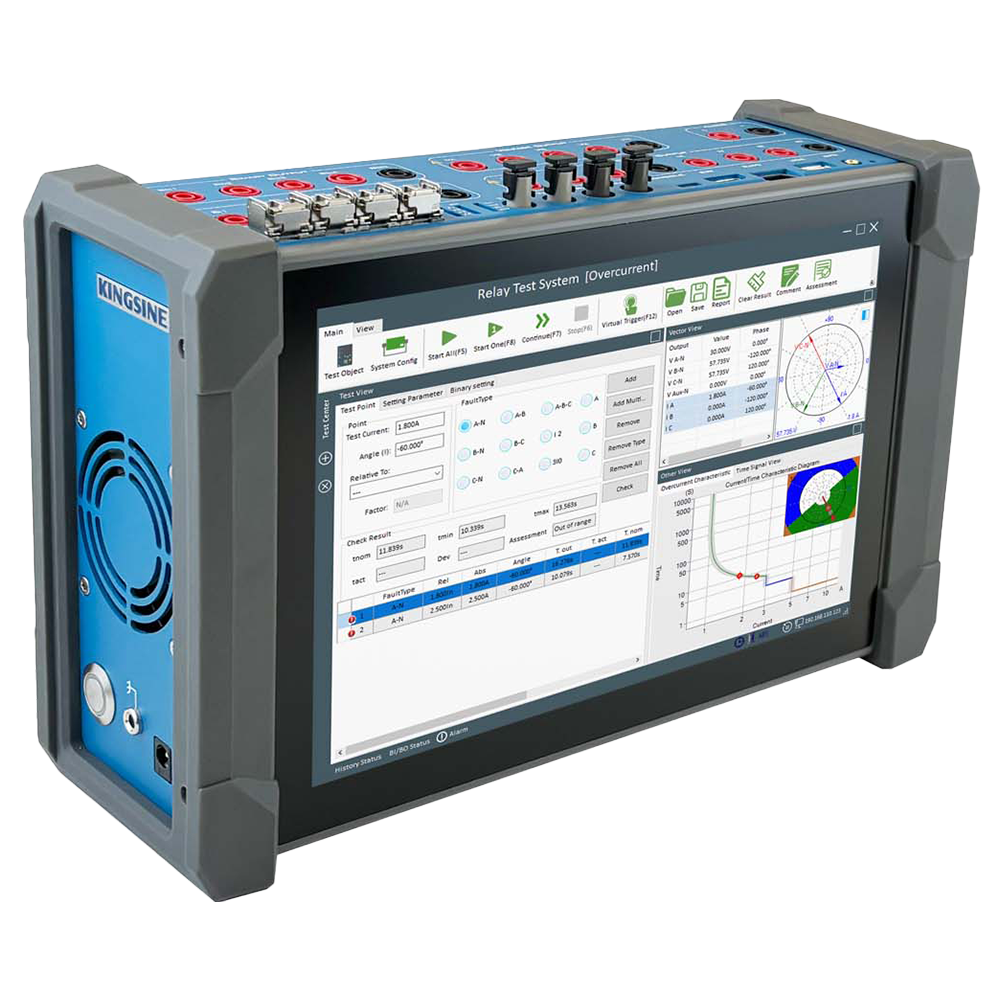

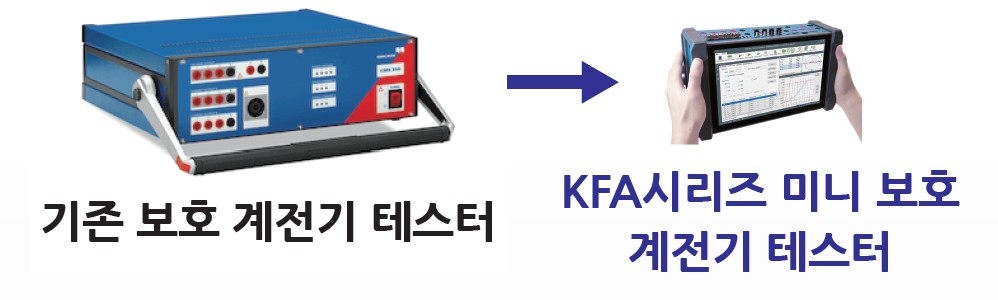

| Touch Screen & Host Control | Yes, 10.1" LCD |
| Basic PC Software | Support |
| Advance PC Software | Support |
| Other Information | |
| Weight | 3.8kg |
| Dimensions (W x D x H) | 288x185x95 (mm) |
